Establish accurate electricity metering for every ASIC
Save up to 30% on electricity costs
End disputes over energy consumption
Tariff analysis and peak hour load management
Hourly energy balances across consumption groups
24/7 power equipment monitoring and instant alerts
Initial hardware investment from $18/ASIC
BMC, Prominer, KHANT CRYPTO, ENERGY PLUS, SIBLESCOM, and others
At our facility, we organized power supply through two independent connections—this allowed us to select better tariffs and manually switch between sources based on load and time of day. This approach should have delivered significant savings, but manually tracking the results was difficult, and automation system glitches were inevitable.
Before implementing Amivisor, we conducted manual meter readings at our containers monthly using clamp meters to measure each ASIC’s consumption. This manual process was not only time-consuming but regularly caused disputes with clients: equipment owners demanded explanations for why their bills didn’t match expectations, cited mining calculators as reference, and argued over every kilowatt-hour.
The main challenge was controlling the energy balance between the primary commercial meter at 110 kV, measurement points in the 10 kV distribution switchgear for each outgoing line, transformers at the 0.4 kV substations, and data centers themselves. We needed to understand exactly where energy losses occur to avoid operating at a loss and maintain profitable hosting operations.

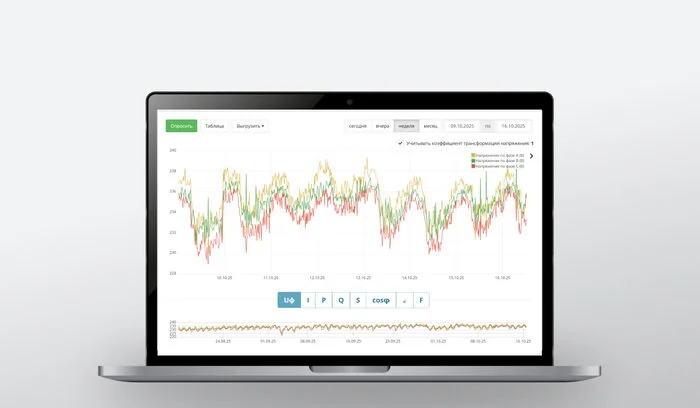

Outage monitoring, voltage and frequency deviation control. Automatic generation of violation reports for supplier claims.

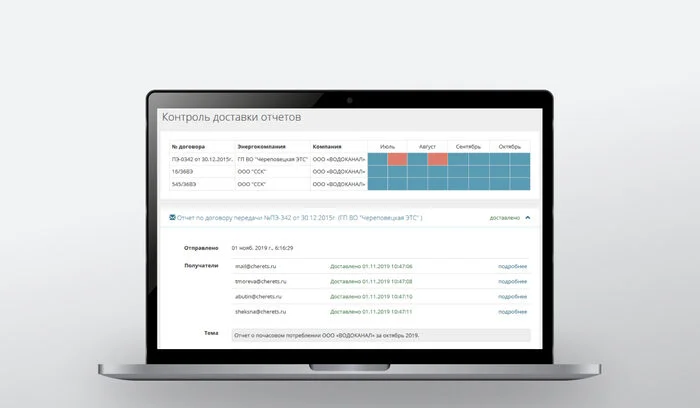

Generation and submission of 15-, 30-, 60-minute reports per electricity supplier requirements. Automatic data validation before submission = no rejected reports.

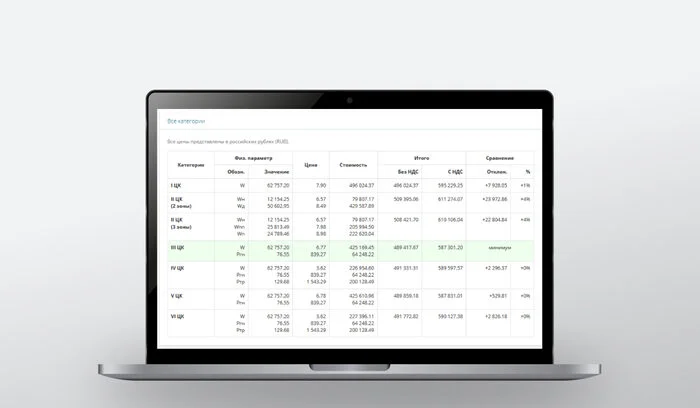

Tariff analysis across all available tariffs to identify the most advantageous power supply terms based on your equipment operating schedule. Assessment of energy storage effectiveness and alternative energy source deployment during peak hours.

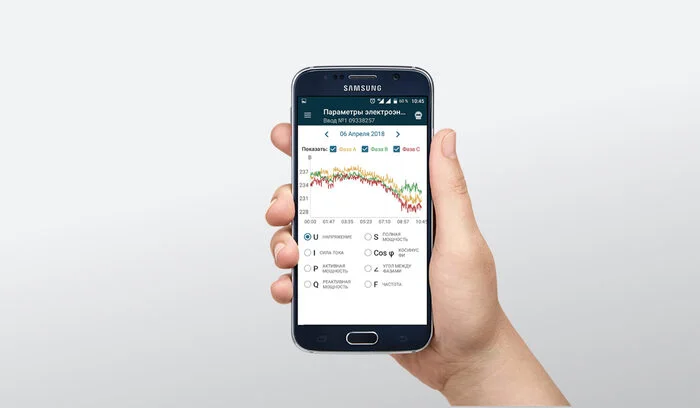

Tenants/miners can track consumption for their devices through web platform or mobile app. Data recording on an independent platform minimizes disputes with your counterparties and builds trust.

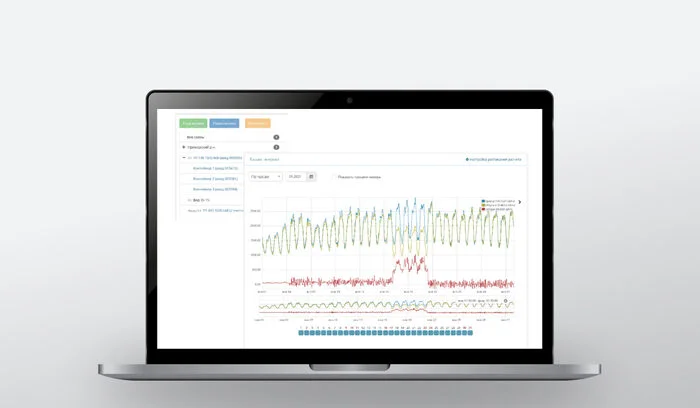

Hourly comparison of consumption between commercial and technical meters. Real-time loss detection. Notifications when permissible imbalances are exceeded

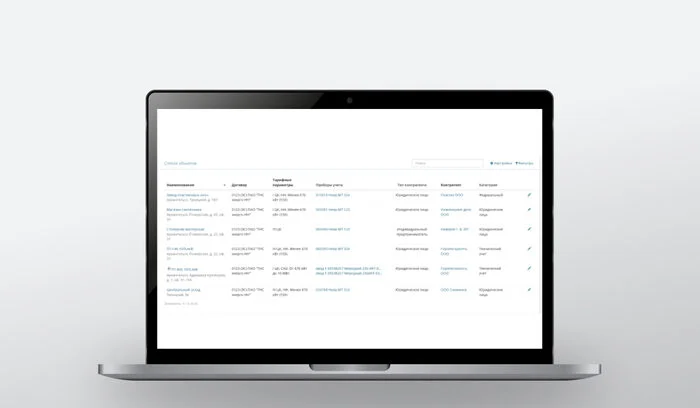

Consumption calculations based on nameplate capacity or ASIC control panel data are inaccurate. We offer metering based on compact, multi-channel certified meters for each ASIC or group. Our system prevents errors and disputes and protects against losses.
Automatic peak hour data updates. Peak hour consumption reduction for cost savings and regulatory compliance.
Round-the-clock monitoring of temperature, voltage, currents, and power of transformers and gas engine power plants. Automatic notifications and load management when permissible values are exceeded.
EQUIPMENT SELECTION & COST CALCULATION
We assess your metering requirements, analyze your electrical distribution schemes, and review your power purchase agreements.
PILOT PROJECT
We enable system testing on your existing meters and train your team on platform operation.
FULL-SCALE IMPLEMENTATION
We ship pre-configured hardware, provide installation guidance, integrate with your existing systems, and deliver ongoing technical support.
Energy metering by individual ASIC miners is implemented using Wiren Board multi-channel electricity meters (certified measurement device). One compact meter can measure consumption for up to 12 single-phase devices.
Cost per ASIC metering setup: from 18 $
Device dimensions: 100×80 mm
Amivisor supports over 200 meter models from different manufacturers. Simply connect a GSM modem or Ethernet converter. Up to 31 electricity meters can be connected to a single modem.
Modem/Converter cost: from 60 $
Yes, via API. We support SAP, and other platforms.
Yes, we support gas engine power generation systems.
No, the system operates automatically. Technical support included.
Typically 45 months for hosting providers, 34 months for large mining operations.
For container and power equipment metering—all meters in the government registry of measuring devices: Landis+Gyr, Itron, Iskra, Holley and others. For ASIC metering—multi-channel meters: Wiren Board, Pilot, Satec, and others.
